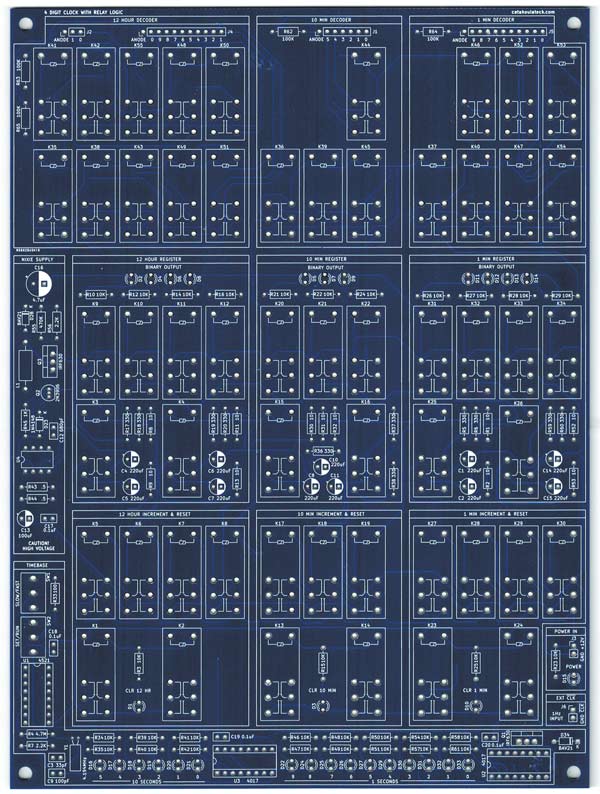

Show off your retro technology nerdiness with a single board 4-digit 12-hour nixie clock running off DPDT relay logic ready to power your choice of nixies or similar decimal display! The design uses a solid-state timebase and seconds counter for practical purposes so there is no constant clicking noise every second, but you do have the option to wire in an external 1Hz timebase from any circuit of your preference including more relay counters, a mechanical timer, or even vacuum tube based circuitry.
More documentation on this design can be found at www.electronixandmore.com. Make sure to check out the videos!
Interested in more? Check out Relay Logic Modules!
CAUTION: The board generates voltages for nixie tubes that are significantly higher than what it takes in. It is your responsibility to ensure your safety when using the board.
Datasheet: RL1200_ds.pdf
Schematic: RL1200_sch.pdf
PCB only: $55.00
